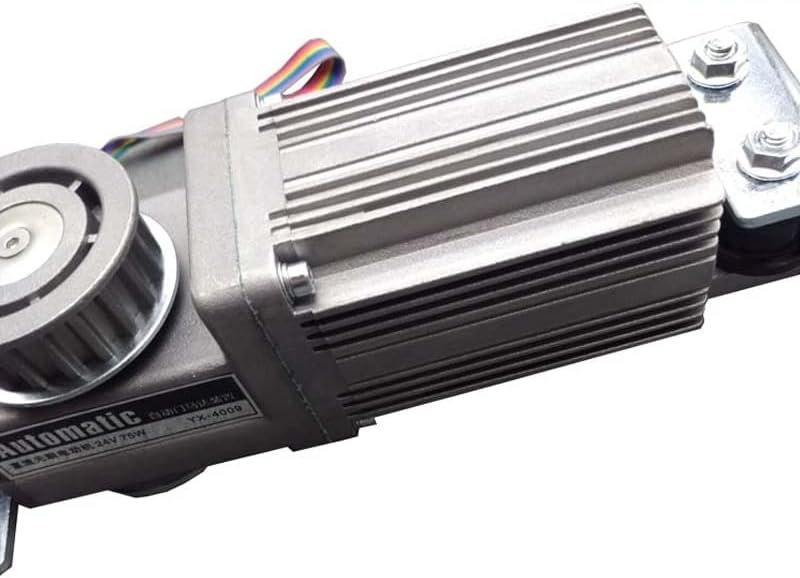

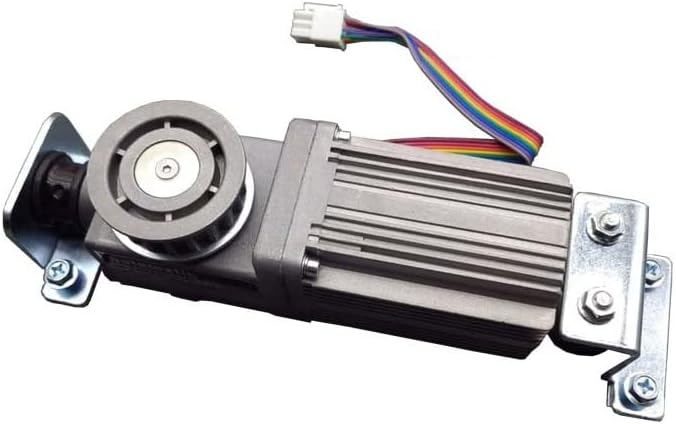

Translation automatic induction door motor electric sliding door to open door automatic door automatic door universal

The main technical parameters: universal automatic door square motor unitProduct Type: Brushless DC MotorPower supply / output voltage: AC220V / DC24V Rated power: 75WRated speed: 2500RPM Output speed: 150RPMService life: 6 million times Temperature range: -10 ° C to 55 ° C Feature Descriptions:1. DC brushless motor, small size, high power and low running noise.2, automatic one-piece multi-function motor, the fuselage and gearbox integrated, avoiding the vibration noise caused by the need of small belt drive.3, using worm gear transmission, finishing, high transmission efficiency, large output torque, low noise.4, with Hall signal output, control accuracy. Connection method: using Japan imported JST nine-hole terminal5. Zinc alloy synchronous wheel output has the characteristics of light weight, good shock absorption, aging resistance and low temperature resistance, which effectively reduces rolling friction noise during operation.6, easy to install, safe and reliable, small size, equipped with mounting brackets.Item specifics:Model number: Universal automatic door motorCertification: CCCOrigin: Mainland China

• 1. DC brushless motor, small size, high power and low running noise.
• 2, automatic one-piece multi-function motor, the fuselage and gearbox integrated, avoiding the vibration noise caused by the need of small belt drive.
• 3, using worm gear transmission, finishing, high transmission efficiency, large output torque, low noise.
• 4, with Hall signal output, control accuracy. Connection method: using Japan imported JST nine-hole terminal
• 5. Zinc alloy synchronous wheel output has the characteristics of light weight, good shock absorption, aging resistance and low temperature resistance, which effectively reduces rolling friction noise during operation.
